cat3.0安装配置集成springboot+mybatis

一、环境清单

CentOS 7、mysql5.6、安装jdk8、安装maven3以上、安装tomcat8、安装git

二、cat服务器端安装

1、下载源码
原来下载主要会用到里面的一些资料

a、数据库脚本；
b、客户端包cat_client.jar；

gitee

git clone https://gitee.com/mirrors/CAT.git （国内镜像速度快）

或者

github

git clone https://github.com/dianping/cat

2、下载服务器端包cat.war

http://unidal.org/nexus/service/local/repositories/releases/content/com/dianping/cat/cat-home/3.0.0/cat-home-3.0.0.war 记得重命名为cat.war

mv cat-home-3.0.0.war cat.war

3、发布cat.war包前的准备工作

a、数据库初始化

创建cat库》找到源码中根目录下script/CatApplication.sql文件》在cat库中执行脚本

b、创建配置文件目录（注意目录必须有读写权限）
/data/appdatas/cat ,/data/applogs/cat，然后权限

chmod 777 /data/ -R

c、 进入/data/appdatas/cat 目录,新建server.xml,datasources.xml配置文件

vim server.xml

<?xml version="1.0" encoding="utf-8"?>
<config mode="client">
    <servers>
        <server ip="你的内网ip" port="2280" http-port="8080"/>
        <!-- 集群时添加其他服务器
        <server ip="你的内网ip" port="2280" http-port="8080"/>
        -->
    </servers>
</config>

vim datasources.xml

<?xml version="1.0" encoding="utf-8"?>

<data-sources>
	<data-source id="cat">
		<maximum-pool-size>3</maximum-pool-size>
		<connection-timeout>1s</connection-timeout>
		<idle-timeout>10m</idle-timeout>
		<statement-cache-size>1000</statement-cache-size>
		<properties>
			<driver>com.mysql.jdbc.Driver</driver>
			<url><![CDATA[jdbc:mysql://127.0.0.1:3306/cat]]></url>  <!-- 请替换为真实数据库URL及Port  -->
			<user>root</user>  <!-- 请替换为真实数据库用户名  -->
			<password>root</password>  <!-- 请替换为真实数据库密码  -->
			<connectionProperties><![CDATA[useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&socketTimeout=120000]]></connectionProperties>
		</properties>
	</data-source>
</data-sources>

d、发布cat.war包

修改tomcat server.xml配置编码

<Connector port="8080" protocol="HTTP/1.1"
           URIEncoding="utf-8"    connectionTimeout="20000"
               redirectPort="8443" />  <!-- 增加  URIEncoding="utf-8"  -->

将cat.war包拷贝到tomcat 的webapps目录中

启动tomcat

http://ip:8080/cat/s/config?op=routerConfigUpdate

记得开放你的8080端口
默认用户名admin admin

e、配置客户端路由

<?xml version="1.0" encoding="utf-8"?>
<router-config backup-server="cat服务器端的ip" backup-server-port="2280">
   <default-server id="cat服务器端的ip" weight="1.0" port="2280" enable="true"/>
   <network-policy id="default" title="default" block="false" server-group="default_group">
   </network-policy>
   <server-group id="default_group" title="default-group">
      <group-server id="cat服务器端的ip"/>
   </server-group>
</router-config>

配置完成后需要重启tomcat

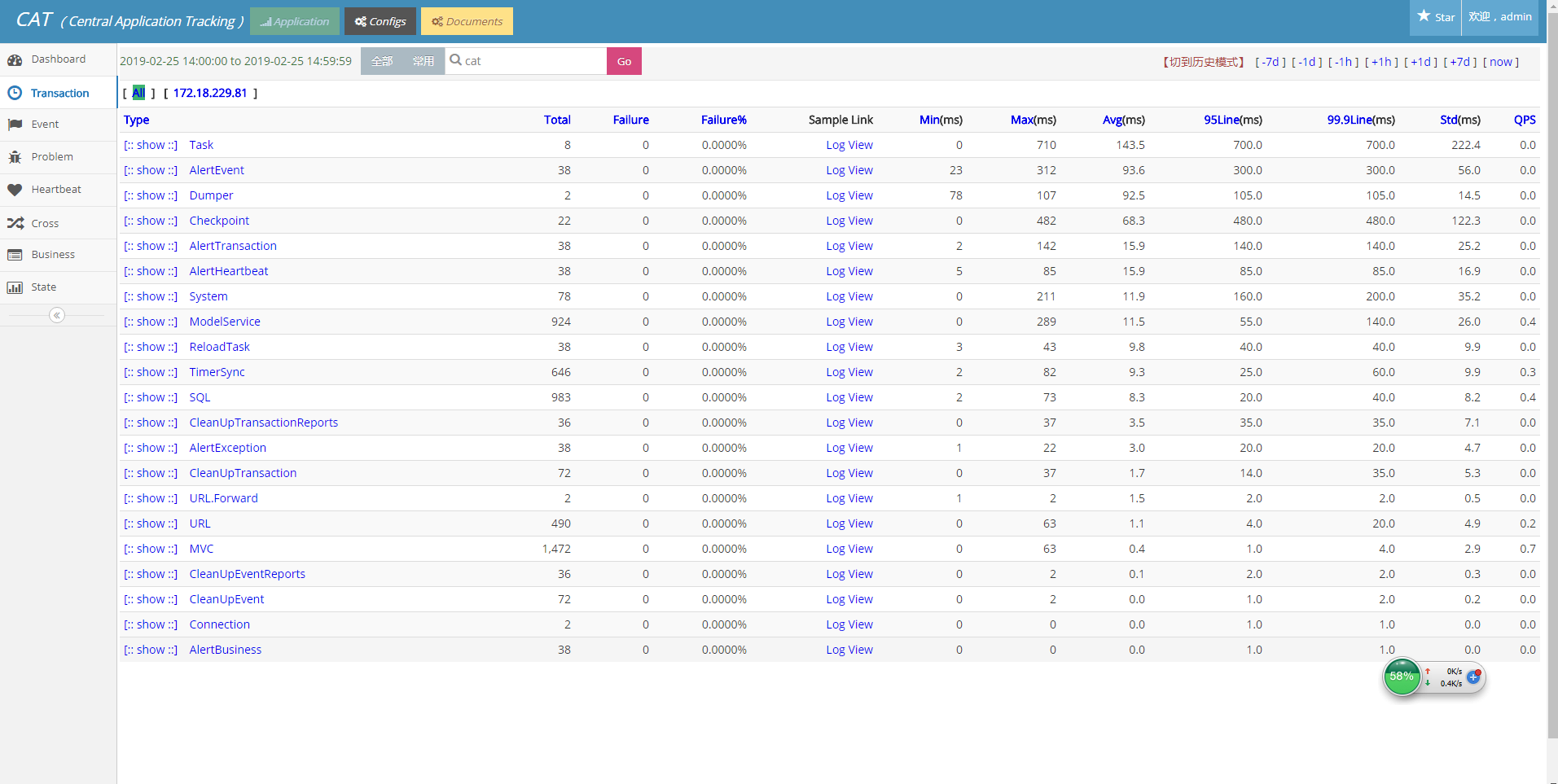

在application标签中如果能出现下图 则说明服务器端安装成功了

很多网上的事例都只到这步，其实真正使用cat才只得一点准备工作呢，下面我们来看看客户端集成

三、客户端集成

本文主要介绍集成监控spirngboot项目、Service、mybatis。

1、本地jar包上传到仓库

使用源码中 lib/java/jar中的cat_client.jar包上传到仓库；你也可以通过源码打包，但是打包过程可能会出现依赖包下载不下来的情况，建议配置阿里云镜像。

mvn deploy:deploy-file -DgroupId=com.dianping.cat -DartifactId=cat-client -Dversion=3.0.0 -Dpackaging=jar -Dfile=C:\Users\ssd\Desktop\cat-client-3.0.0.jar -Durl=http://{ip}}:{port}/content/repositories/thirdparty/ -DrepositoryId=thirdparty
本地操作时不需要-Durl参数,注意修改-Dfile参数为你自己的目录

2、项目中引入客户端依赖包

  <dependency>
	<groupId>com.dianping.cat</groupId>
	<artifactId>cat-client</artifactId>
	<version>3.0.0</version>
</dependency>

3、项目更目录下创建/data/appdatas/cat ,/data/applogs/cat,同样需要读写权限

chmod 777 /data/ -R

如果你的项目和服务端发布在一起的话，这不需要本步。如果是不同的机器
那么请在/data/appdatas/cat中创建server.xml

<?xml version="1.0" encoding="utf-8"?>
<config mode="client">
    <servers>
        <server ip="你的内网ip" port="2280" http-port="8080"/>
        <!-- 集群时添加其他服务器
        <server ip="你的内网ip" port="2280" http-port="8080"/>
        -->
    </servers>
</config>

4、将下面的类放到springboot能扫描到的目录下
新建CatFilterConfigure.java类

import com.dianping.cat.servlet.CatFilter;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * Created by zhengwenzhu on 2017/1/17.
 */

@Configuration
public class CatFilterConfigure {

    @Bean
    public FilterRegistrationBean catFilter() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        CatFilter filter = new CatFilter();
        registration.setFilter(filter);
        registration.addUrlPatterns("/*");
        registration.setName("cat-filter");
        registration.setOrder(1);
        return registration;
    }
}

新建OAClientConfigProvider.java类

package com.tanqp.demo.config;

import com.dianping.cat.configuration.ClientConfigProvider;
import com.dianping.cat.configuration.client.entity.ClientConfig;
import com.dianping.cat.configuration.client.entity.Server;
import org.springframework.context.annotation.Configuration;

import java.util.ArrayList;
import java.util.List;

/**
 * @author:xuecx
 * @descript:<p> </p>
 * @date:2019/2/21
 */
@Configuration
public class MyClientConfigProvider implements ClientConfigProvider {
    @Override
    public ClientConfig getClientConfig() {
        List<Server> servers = new ArrayList<Server>();
        servers.add(new Server("你的服务器ip"));
        //需要和app.name以及服务器上配置的一直
        String domain = "test";
        ClientConfig config = new ClientConfig();
        config.setServers(servers);
        config.setDomain(domain);
        return config;
    }

}

5、在resources中新建META-INF/services目录

META-INF目录下新建app.properties 内容如下：

app.name=test

services目录中添加文件名为com.dianping.cat.configuration.ClientConfigProvider的文件 内容如下

com.tanqp.demo.config.MyClientConfigProvider

6、集成mybatis，在config配置目录下（springboot能扫描到即可）添加如下类
CatMybatisPlugin.java

package com.tanqp.demo.config;

import com.dianping.cat.Cat;
import com.dianping.cat.message.Message;
import com.dianping.cat.message.Transaction;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ParameterMapping;
import org.apache.ibatis.mapping.SqlCommandType;
import org.apache.ibatis.plugin.*;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.TypeHandlerRegistry;
import org.mybatis.spring.transaction.SpringManagedTransaction;
import org.springframework.stereotype.Component;
import org.springframework.util.ReflectionUtils;

import javax.sql.DataSource;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.text.DateFormat;
import java.util.*;
import java.util.concurrent.ConcurrentHashMap;
import java.util.regex.Matcher;


/**
 * https://github.com/fanlychie/cat-client-mybatis
 */
@Intercepts({
        @Signature(
                method = "query",
                type = Executor.class,
                args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class}
        ),
        @Signature(
                method = "update",
                type = Executor.class,
                args = {MappedStatement.class, Object.class}
        )
})
@Component
public class CatMybatisPlugin implements Interceptor {

    private static Log logger = LogFactory.getLog(CatMybatisPlugin.class);

    //缓存，提高性能
    private static final Map<String, String> sqlURLCache = new ConcurrentHashMap<>(256);

    private static final String EMPTY_CONNECTION = "jdbc:mysql://unknown:3306/%s?useUnicode=true";

    private Executor target;

    // druid 数据源的类名称
    private static final String DruidDataSourceClassName = "com.alibaba.druid.pool.DruidDataSource";
    // dbcp 数据源的类名称
    private static final String DBCPBasicDataSourceClassName = "org.apache.commons.dbcp.BasicDataSource";
    // dbcp2 数据源的类名称
    private static final String DBCP2BasicDataSourceClassName = "org.apache.commons.dbcp2.BasicDataSource";
    // c3p0 数据源的类名称
    private static final String C3P0ComboPooledDataSourceClassName = "com.mchange.v2.c3p0.ComboPooledDataSource";
    // HikariCP 数据源的类名称
    private static final String HikariCPDataSourceClassName = "com.zaxxer.hikari.HikariDataSource";
    // BoneCP 数据源的类名称
    private static final String BoneCPDataSourceClassName = "com.jolbox.bonecp.BoneCPDataSource";

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        MappedStatement mappedStatement = (MappedStatement) invocation.getArgs()[0];
        //得到类名，方法
        String[] strArr = mappedStatement.getId().split("\\.");
        String methodName = strArr[strArr.length - 2] + "." + strArr[strArr.length - 1];

        Transaction t = Cat.newTransaction("SQL", methodName);

        //得到sql语句
        Object parameter = null;
        if (invocation.getArgs().length > 1) {
            parameter = invocation.getArgs()[1];
        }
        BoundSql boundSql = mappedStatement.getBoundSql(parameter);
        Configuration configuration = mappedStatement.getConfiguration();
        String sql = showSql(configuration, boundSql);

        String s = this.getSQLDatabase();
        Cat.logEvent("SQL.Database", s);

        //获取SQL类型
        SqlCommandType sqlCommandType = mappedStatement.getSqlCommandType();
        Cat.logEvent("SQL.Method", sqlCommandType.name().toLowerCase(), Message.SUCCESS, sql);


        Object returnObj = null;
        try {
            returnObj = invocation.proceed();
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            Cat.logError(e);
        } finally {
            t.complete();
        }

        return returnObj;
    }

    private javax.sql.DataSource getDataSource() {
        org.apache.ibatis.transaction.Transaction transaction = this.target.getTransaction();
        if (transaction == null) {
            logger.error(String.format("Could not find transaction on target [%s]", this.target));
            return null;
        }
        if (transaction instanceof SpringManagedTransaction) {
            String fieldName = "dataSource";
            Field field = ReflectionUtils.findField(transaction.getClass(), fieldName, javax.sql.DataSource.class);

            if (field == null) {
                logger.error(String.format("Could not find field [%s] of type [%s] on target [%s]",
                        fieldName, javax.sql.DataSource.class, this.target));
                return null;
            }

            ReflectionUtils.makeAccessible(field);
            javax.sql.DataSource dataSource = (javax.sql.DataSource) ReflectionUtils.getField(field, transaction);
            return dataSource;
        }

        logger.error(String.format("---the transaction is not SpringManagedTransaction:%s", transaction.getClass().toString()));

        return null;
    }

    /**
     * 重写 getSqlURL 方法
     *
     * @author fanlychie (https://github.com/fanlychie)
     */
    private String getSqlURL() {
        // 客户端使用的数据源
        javax.sql.DataSource dataSource = this.getDataSource();
        if (dataSource != null) {
            // 处理常见的数据源
            switch (dataSource.getClass().getName()) {
                // druid
                case DruidDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, DruidDataSourceClassName, "getUrl");
                // dbcp
                case DBCPBasicDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, DBCPBasicDataSourceClassName, "getUrl");
                // dbcp2
                case DBCP2BasicDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, DBCP2BasicDataSourceClassName, "getUrl");
                // c3p0
                case C3P0ComboPooledDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, C3P0ComboPooledDataSourceClassName, "getJdbcUrl");
                // HikariCP
                case HikariCPDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, HikariCPDataSourceClassName, "getJdbcUrl");
                // BoneCP
                case BoneCPDataSourceClassName:
                    return getDataSourceSqlURL(dataSource, BoneCPDataSourceClassName, "getJdbcUrl");
            }
        }
        return null;
    }

    /**
     * 获取数据源的SQL地址
     *
     * @param dataSource                 数据源
     * @param runtimeDataSourceClassName 运行时真实的数据源的类名称
     * @param sqlURLMethodName           获取SQL地址的方法名称
     */
    private String getDataSourceSqlURL(DataSource dataSource, String runtimeDataSourceClassName, String sqlURLMethodName) {
        Class<?> dataSourceClass = null;
        try {
            dataSourceClass = Class.forName(runtimeDataSourceClassName);
        } catch (ClassNotFoundException e) {
        }
        Method sqlURLMethod = ReflectionUtils.findMethod(dataSourceClass, sqlURLMethodName);
        return (String) ReflectionUtils.invokeMethod(sqlURLMethod, dataSource);
    }

    private String getSQLDatabase() {
//        String dbName = RouteDataSourceContext.getRouteKey();
        String dbName = null; //根据设置的多数据源修改此处,获取dbname
        if (dbName == null) {
            dbName = "DEFAULT";
        }
        String url = CatMybatisPlugin.sqlURLCache.get(dbName);
        if (url != null) {
            return url;
        }

        url = this.getSqlURL();//目前监控只支持mysql ,其余数据库需要各自修改监控服务端
        if (url == null) {
            url = String.format(EMPTY_CONNECTION, dbName);
        }
        CatMybatisPlugin.sqlURLCache.put(dbName, url);
        return url;
    }

    /**
     * 解析sql语句
     *
     * @param configuration
     * @param boundSql
     * @return
     */
    public String showSql(Configuration configuration, BoundSql boundSql) {
        Object parameterObject = boundSql.getParameterObject();
        List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
        String sql = boundSql.getSql().replaceAll("[\\s]+", " ");
        if (parameterMappings.size() > 0 && parameterObject != null) {
            TypeHandlerRegistry typeHandlerRegistry = configuration.getTypeHandlerRegistry();
            if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
                sql = sql.replaceFirst("\\?", Matcher.quoteReplacement(getParameterValue(parameterObject)));

            } else {
                MetaObject metaObject = configuration.newMetaObject(parameterObject);
                for (ParameterMapping parameterMapping : parameterMappings) {
                    String propertyName = parameterMapping.getProperty();
                    if (metaObject.hasGetter(propertyName)) {
                        Object obj = metaObject.getValue(propertyName);
                        sql = sql.replaceFirst("\\?", Matcher.quoteReplacement(getParameterValue(obj)));
                    } else if (boundSql.hasAdditionalParameter(propertyName)) {
                        Object obj = boundSql.getAdditionalParameter(propertyName);
                        sql = sql.replaceFirst("\\?", Matcher.quoteReplacement(getParameterValue(obj)));
                    }
                }
            }
        }
        return sql;
    }

    /**
     * 参数解析
     *
     * @param obj
     * @return
     */
    private String getParameterValue(Object obj) {
        String value = null;
        if (obj instanceof String) {
            value = "'" + obj.toString() + "'";
        } else if (obj instanceof Date) {
            DateFormat formatter = DateFormat.getDateTimeInstance(DateFormat.DEFAULT, DateFormat.DEFAULT, Locale.CHINA);
            value = "'" + formatter.format(new Date()) + "'";
        } else {
            if (obj != null) {
                value = obj.toString();
            } else {
                value = "";
            }

        }
        return value;
    }

    @Override
    public Object plugin(Object target) {
        if (target instanceof Executor) {
            this.target = (Executor) target;
            return Plugin.wrap(target, this);
        }
        return target;
    }

    @Override
    public void setProperties(Properties properties) {
    }

}

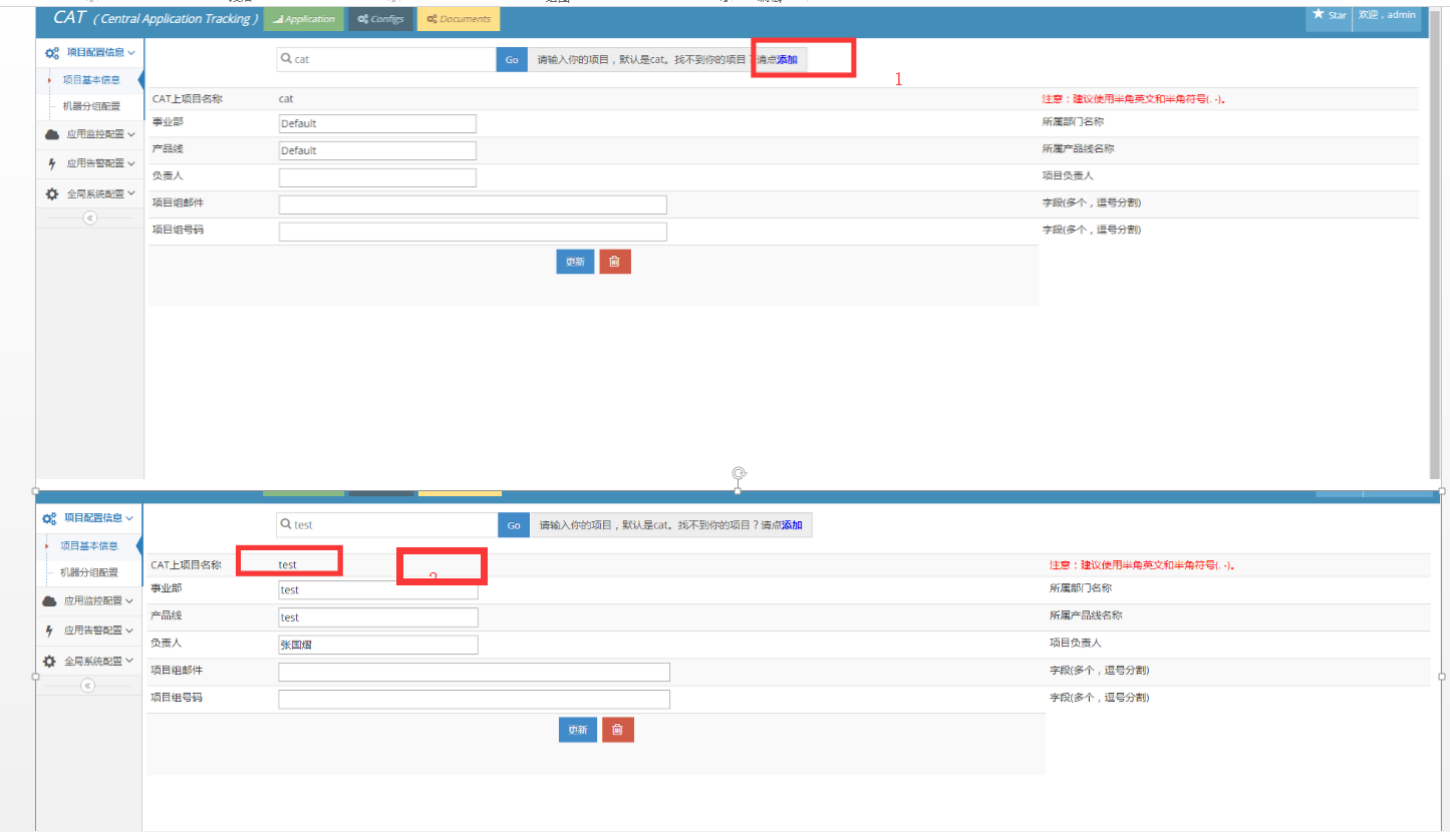

7、登录cat服务器端，配置项目 如下图

8 全局配置》消息采样配置

<?xml version="1.0" encoding="utf-8"?>
<sample-config>
   <domain id="cat" sample="1.0"/>
   <domain id="test" sample="1.0"/>
</sample-config>

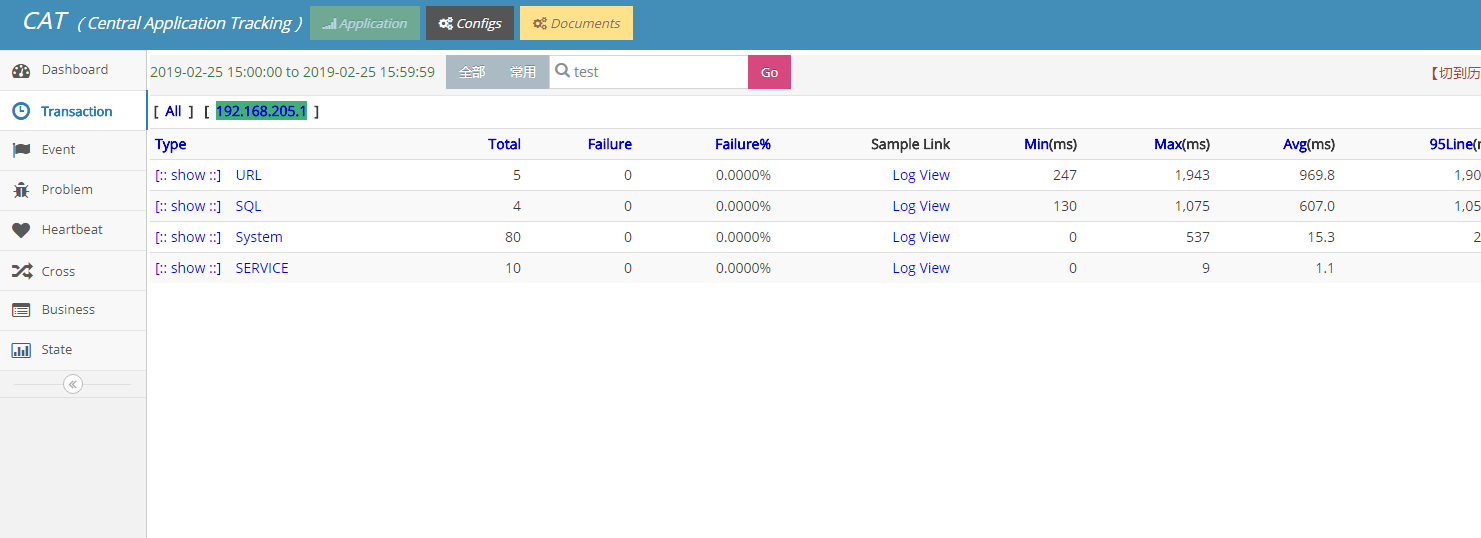

发布你的项目，并发送几个请求，出现如下图则说明成功了,图中显示的service需要做第10步的操作；

10、编写aop监控service

ServiceAspect.java

package com.tanqp.demo.aop;

import com.alibaba.fastjson.JSONObject;
import com.alibaba.fastjson.serializer.SerializerFeature;
import com.dianping.cat.Cat;
import com.dianping.cat.message.Event;
import com.dianping.cat.message.Transaction;
import com.tanqp.demo.entity.AccessLog;
import com.tanqp.demo.enums.LogType;
import com.tanqp.demo.exception.DemoException;
import com.tanqp.demo.service.AccessLogService;
import com.tanqp.demo.utils.NetworkUtil;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.*;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.io.IOException;

/**
 * @Author:xuecx
 * @CreateDate: 2018/3/17.
 * @QQ:1276162287
 * @Discription:
 */
@Component
@Aspect
public class ServiceAspect {
    Logger logger = LoggerFactory.getLogger(ServiceAspect.class);

    @Pointcut("execution(public * com.tanqp.demo.service.*.*(..))")
    public void log() {
    }

    @Before("log()")
    public void boBefore(JoinPoint joinPoint) throws IOException {
        Object[] args1 = joinPoint.getArgs();
        Transaction t = Cat.newTransaction("SERVICE", joinPoint.getSignature().getName());
        Cat.logEvent("URL.Server", joinPoint.getSignature().getDeclaringTypeName(), Event.SUCCESS,  JSONObject.toJSONString(args1));
        Cat.logMetricForCount("metric.key");
        Cat.logMetricForDuration("metric.key", 5);
        t.setStatus(Transaction.SUCCESS);
        t.complete();
    }

    @After("log()")
    public void doAffter() {
        logger.info("处理中");
    }

    @AfterReturning(pointcut = "log()", returning = "object")
    public void doAffterReturning(Object object) {
        logger.info("return={}", object.toString());
    }

    @AfterThrowing(pointcut = "log()", throwing = "e")
    public void doAfterThrowing(Throwable e) {
        Transaction t = Cat.newTransaction("SERVICE", "Name");
        t.setStatus(e);
        Cat.logError(e);
        t.complete();
    }
}

四、总结

1、如果项目是从头开始，需要定制监控某些接口，那么可以使用cat，cat更多的是使用它的埋点监控，对于已经上线的项目建议使用pinpoint（0代码侵入监控）；

2、另外基于mybatis拦截器的监控 没有select的，只有update和insert，当然可以自己写关键的sql发送到服务器端；

3、侵入式，存在代码改动；

pinpoint安装学习教程
